Accupower Jamaica Limited  |  SKU: BVX900L-LM

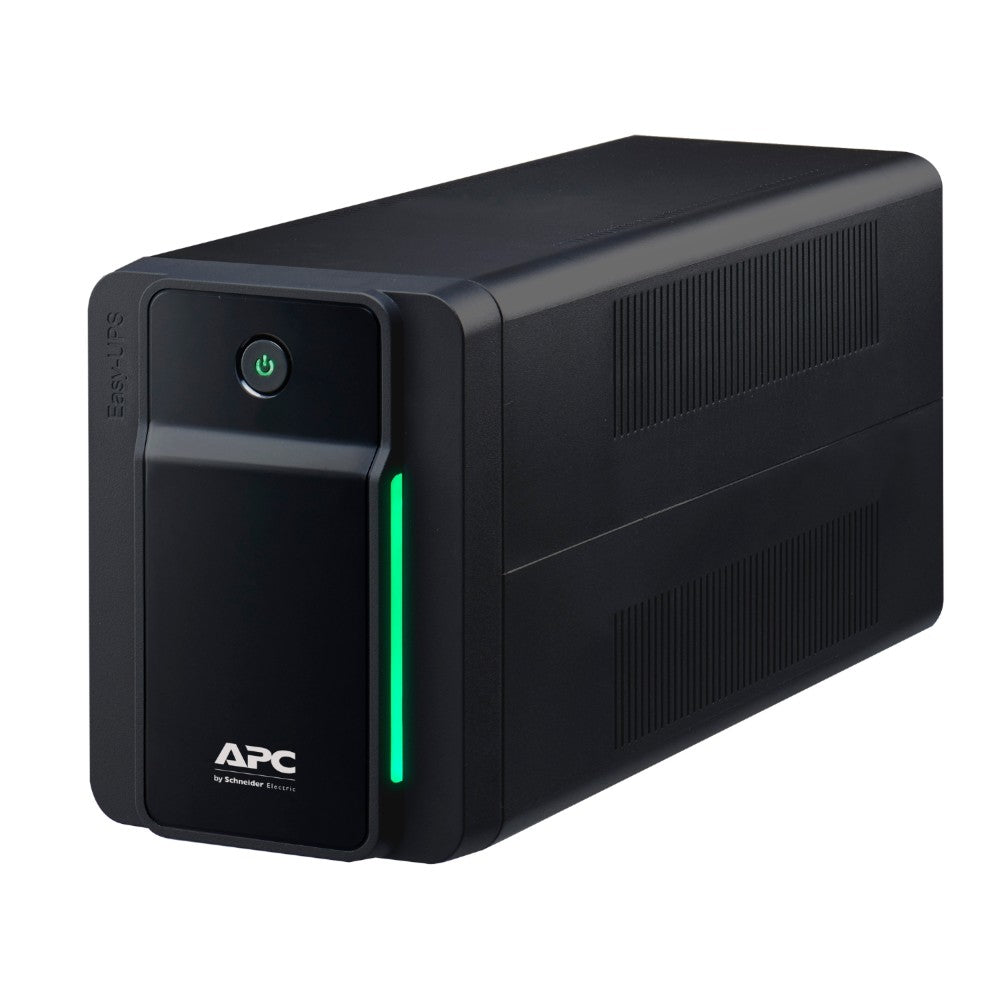

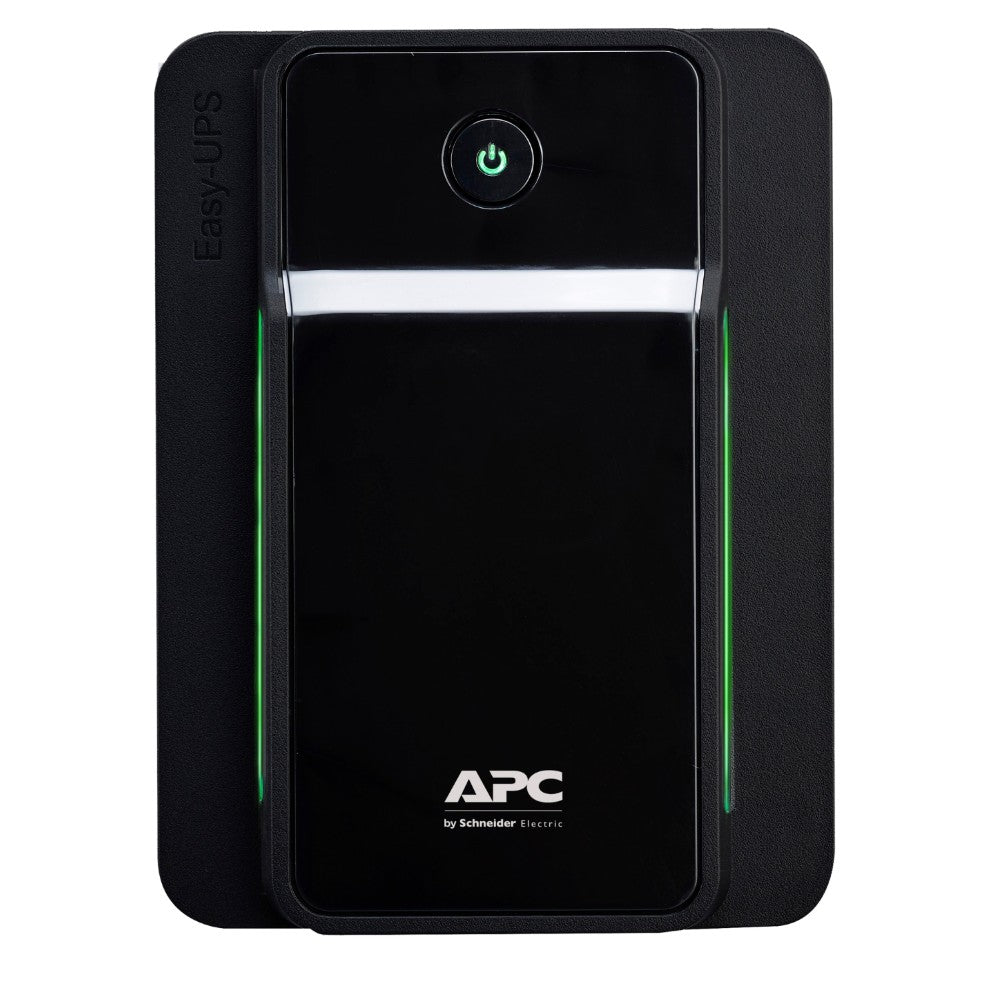

APC BVX900L-LM Back-UPS 900VA, 120V, AVR, NEMA Sockets

$16,800.96

Add a stand out message for your customers

Description
Execution time for loading
W
information_stroke

Min-Max: 48-480W
1min 31s
Max. used capacity
information_stroke
100%


Main Input Voltage 120 V AC 1 phase
Main Output Voltage 120 VAC 1 phase
rated power in W 480W
rated power in VA 900 VA
Input Connection Type NEMA 5-15P

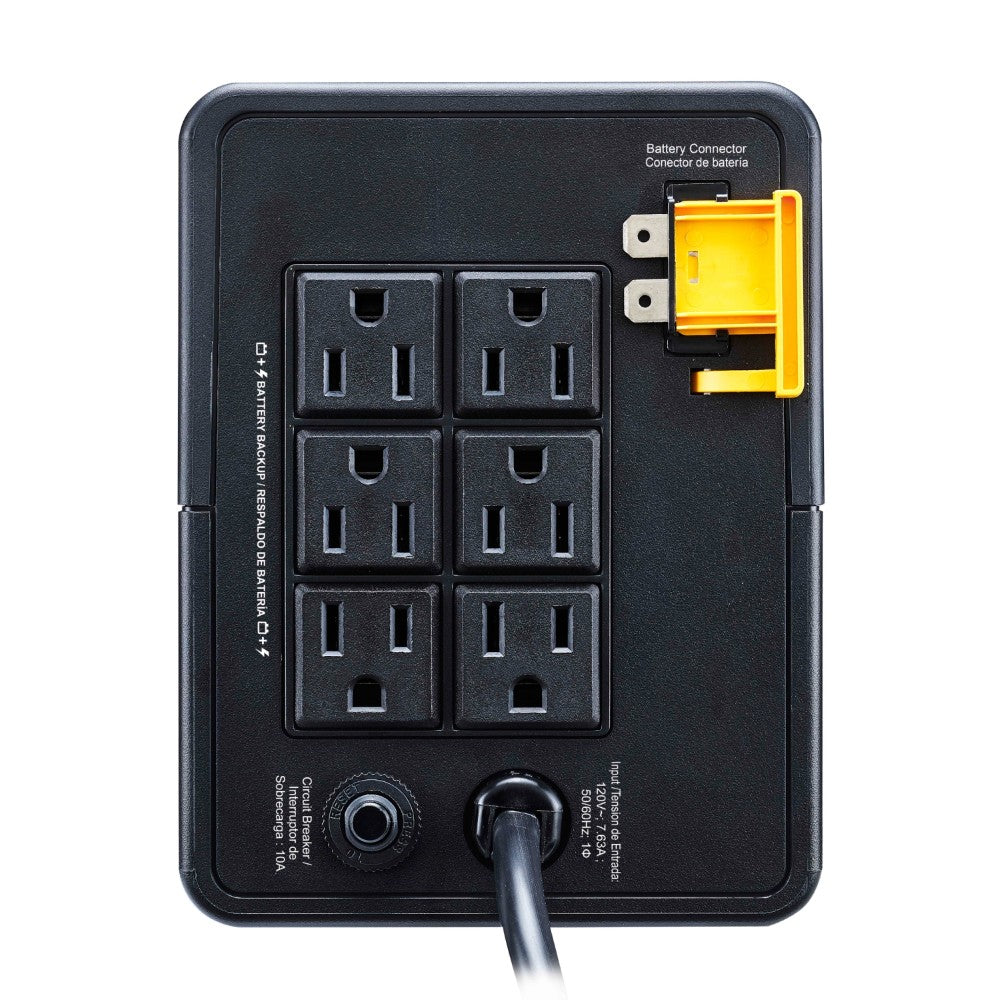

output connection type 6 NEMA 5-15R
cable length 1.52m
number of wires 1
Battery Type Sealed Lead Acid Battery
Batteries and autonomy
Execution time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Pre-installed batteries 0
Free battery slots 0
Typical recharge time 8 hours
battery voltage 12V
battery capacity 9.0 Ah
battery life 2…3 year(s)
Extendable duration 0
General
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
UPS size W.S.
Physical
color Black
height 16cm
width 12cm
depth 35.5cm
product weight 6kg
mounting type Floor
Mounting preferences No preference
mounting type On luminaire cord
USB compatible No
Entrance
Assigned frequency of employment 50/60 Hz +/- 5 Hz ((*)) auto-sensing ((*))
separation bars 89...145 V 120 V AC
input protection type Circuit breaker
cos phi 0.53
Exit
Maximum configurable power (watts) 480W
Output frequency (synchronized to main power grid) 50/60 Hz +/- 1 Hz synchronized to main electrical grid
Topology Interactive line
Waveform type Timed approximation of a sine wave
screwdriver slot 98% full charge
Full load runtime 00:01:00 480W
graph display 1
Half load runtime 00:07:00 240W
Maximum configurable power in VA 900 VA
Transfer time Typical value 6 ms : Maximum value 10 ms
Accordance
product certifications NOM
Environmental
operating ambient temperature 0…40 °C
RH 0…95% non-condensing
maximum operating altitude 0...3000 m
storage ambient temperature -15…40 °C
Storage Relative Humidity 0…95% non-condensing
storage altitude 0…3000 m
acoustic level 40dBA
IP protection grade IP20
Protection against spills and leaks
Surge Energy Rating (Joules) 350J
Packaging units
Package Unit Type 1 PCE
Number of units in package 1 1
Package 1 Height 25cm
Package 1 Wide 19.7cm
Package 1 Length 43cm
Package 1 Weight 6.9kg
Pallet Unit Stacks 12
Stacks of Pallets 8
